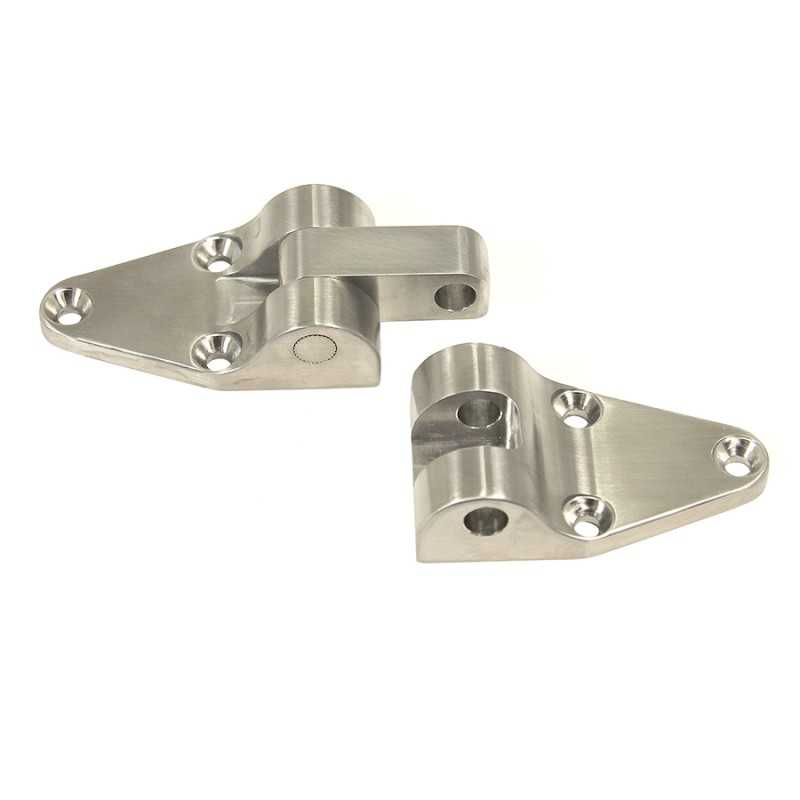

Marine Grade Cast Stainless Steel Safety Hinge & Backer Plates

Marine Grade Machined Stainless Steel Safety Hinge & Backer Plates

T-9201SS
$190.00

These marine grade stainless steel hinges and backer plates are U.I.M. approved.


NOTE: Base Price does not include a Quick Pin.


NOTE:
WARNING / DISCLAIMER


MOTORSPORTS ARE DANGEROUS. NO WARRANTY OR REPRESENTATION IS MADE AS TO ABILITY TO PROTECT THE USER FROM ANY INJURY OR DEATH. THE USER ASSUMES RISK. IT IS THE USERS RESPONSIBILITY TO BECOME FAMILIAR WITH ALL AVAILABLE INFORMATION CONCERNING THE CORRECT USE AND LIMITATIONS OF THESE PRODUCTS. IF YOU ARE UNCERTAIN OF THE CORRECT USE OR LIMITATIONS OF THIS PRODUCT, DO NOT USE IT.

THE USER ACKNOWLEDGES:

* That personal safety products are only part of a complete safety system that include the race boat, the race course, and the prevailing conditions at the time of use.

* That personal safety products are not designed to provide the same level of performance or protection throughout the particular product. Different parts or areas of the product may provide less protection even though they appear the same.

THE USER ACKNOWLEDGES THAT MOTORSPORTS ARE DANGEROUS. THERE IS A SERIOUS RISK OF INJURY OR DEATH, EVEN IF THIS PRODUCT IS USED CORRECTLY. NO PERSONAL SAFETY PRODUCT CAN PROTECT THE USER FROM INJURY OR DEATH.

Quantity

 Please Make Your Product Selections   * Indicates a Required Selection

Additional Selections

View the Single Hinge & Lanyard Installation Guide.

View the Dual Hinge Installation Guide.

Applications:

  • Tunnel boat/hydro canopies
  • Offshore canopy lids
  • Engine Hatches
  • Entry doors and hatch ways doors or any other application for easy or quick removal of covers or doors

This safety hinge is the only reliable quick release safety hinge system on the market. The safety hinge achieves this by the pull release pin not being used as the pivot hinge pin. Combined experience showed that existing hinges when loaded caused the release pin to bend, distort, or gall.

Tested on both tunnel and offshore race boats, this hinge has been internationally welcomed by both racing and rescue teams alike. Browse our collection of stainless steel boat hinges here! Manufactured from 316 marine grade machined stainless steel which has the highest tensile strength of all non-corrosive materials.

This machined hinge is precision engineered to ensure reliable performance. The hinge pin is an aerospace stainless quick pin for extra reliability and safety. These pins release by push and pull, or drive-out.

Details complete these stainless steel marine hinges in manufacture and design, including quick release features, mirror polishing, and backer plates.

: T-9201SS
